The Protectum roof system is a complete system that can be used as a waterproof angle standing seam roofing or standing seam roofing where the roll seam welding of the hinges can be used from 0° roof inclination. Due to the different profile types and profile heights the stainless steel roof covering of each roof shape adapts on its own

Due to the possibility to have a green roof or installing a photovoltaic system, we put a matching hat on each object.

General building approval Z-14.1-622

Profile rails

RS 50-PS profile rail

  • Angle standing seam height 50 mm
  • Panel width to 625 mm
  • General building approval Z-14.1-622
  • Stainless steel to DIN EN 10088-2
Roof systems

RS 32-PS profile rail

  • Angle standing seam height 32 mm
  • Panel width to 640 mm
  • General building approval Z-14.1-622
  • Stainless steel to DIN EN 10088-2
Roof systems

RS 22-ES profile rail

  • Standing seam height 22 mm
  • Panel width to 660 mm
  • General building approval Z-14.1-622
  • Stainless steel to DIN EN 10088-2
Roof systems

Facts and benefits

Roof systems

Waterproof

Thanks to weld seams per ISO 4063 process 22 RR, the roof covering is absolutely waterproof.

Roof systems

Photovoltaic

The wind load calculation to DIN EN 1991-1-4 allways considers an installed photovoltaic system on the metal folds.

Roof systems

Panel lenght

Due to the 200 mm sliding area of the GP6 clips, the length of the panels can be mounted with 30 meters without a cross fold.

Roof systems

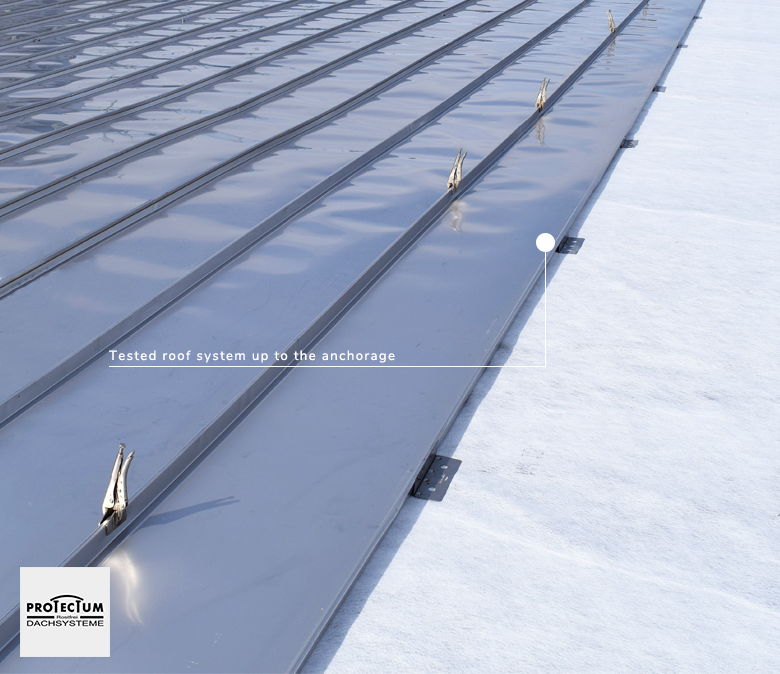

Safety

Protectum Dachsysteme approved roof systems have a general construction approval Z-14.1-622 from DIBt.

Facts and benefits

Roof systems

Waterproof

Thanks to weld seams per ISO 4063 process 22 RR, the roof covering is absolutely waterproof.

Roof systems

Photovoltaic

The wind load calculation to DIN EN 1991-1-4 allways considers an installed photovoltaic system on the metal folds.

Roof systems

Panel lenght

Due to the 200 mm sliding area of the GP6 clips, the length of the panels can be mounted with 30 meters without a cross fold.

Roof systems

Safety

Protectum Dachsysteme approved roof systems have a general construction approval Z-14.1-622 from DIBt.

Wind load calculation

With our tested Protectum roofing systems consist of GP6 system clips and the corresponding metal panels you are on the safe side. The DIBt and MPA tests values provide a perfect basis for a wind load calculation according to DIN EN 1991-1-4.

Due to the high extension values of our roof systems, a photovoltaic system is always included in our wind load calculation as per DIN EN 1991-1-4.
